Phoenix DS Clean Power (18 Pulse) AC Drive

For more information

The Phoenix DS Clean Power AC drive uses 18 Pulse rectifications to minimize both the voltage and current harmonic distortion on the AC power line. In fact, the Phoenix DS Clean Power AC drive meets the stringent requirements of IEEE 519 1992 without the use of any additional external filters, line reactors or drive isolation transformers. You get all the economic advantages of an AC drive, reduced inrush current demand.



    Product List

    Contact Us

    Home

    Photo Gallery

    Applications

    Downloads

    Product List

    Home

    Downloads

    Applications

    Photo Gallery

  Contact Us

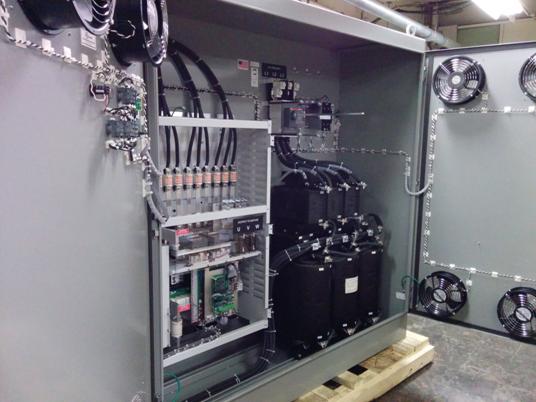

125 HP  Clean Power

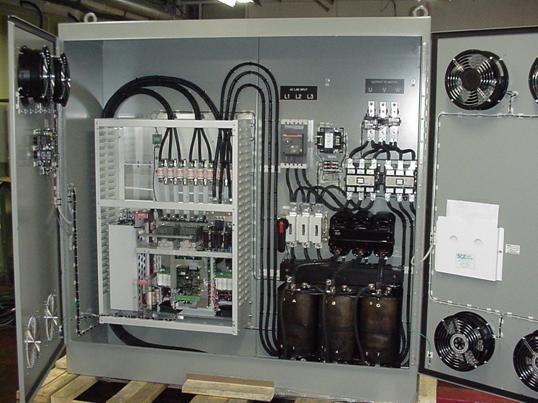

150 HP  Clean Power

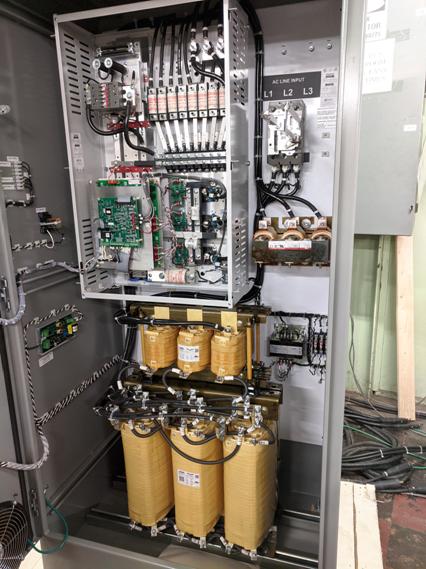

300 HP  Clean Power

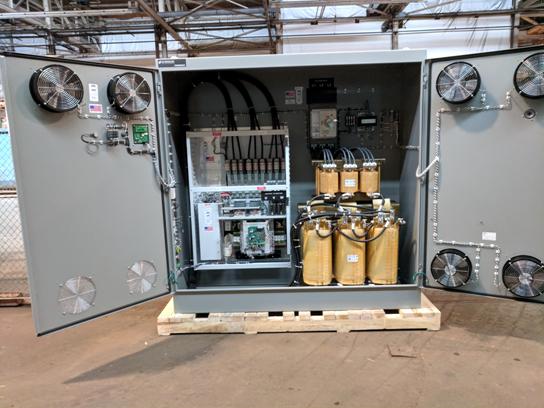

350 HP  Clean Power

400 HP  Clean Power

500 HP  Clean Power

500 HP  Clean Power

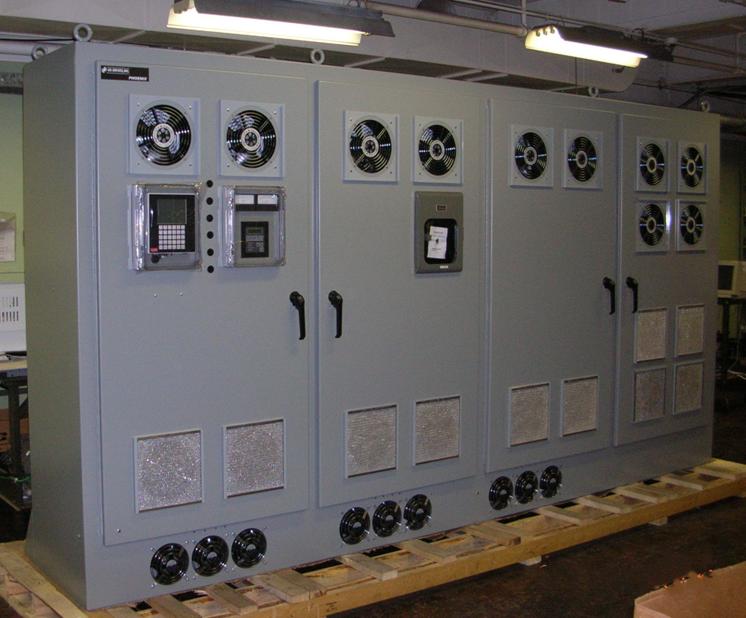

ESP Inverter for the oil industry (Middle East). Example: 1350 HP 18-pulse inverter with sine wave output filters driving medium voltage AC motors.

Every Phoenix DS Clean Power (18 Pulse)

AC drive Includes the Following:



                                      *  Input AC Line Reactor

                                      *  18 Pulse Phase Shifting Transformer

                                      *  18 Pulse Diode Rectifier Bridge

                                      *  Phoenix DS Inverter Section

Source Voltage

Phoenix DS Clean Power AC Drive

Total Harmonic Distortion

(Voltage) = .68% (Current) = 1.71%

Five 400Hp Clean-Drives (Total: 2000Hp)

Operating from a 2500Kva Transformer with 5.75% Impedance

    Primary Voltage:  16,500Vac

    Secondary Voltage:  480Vac

Source Current
