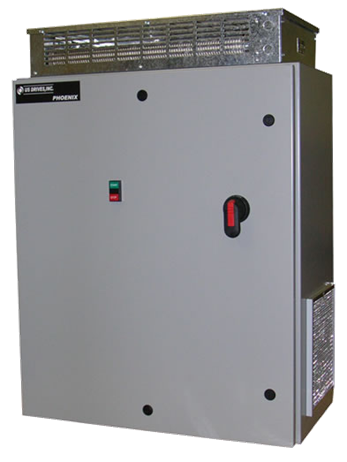

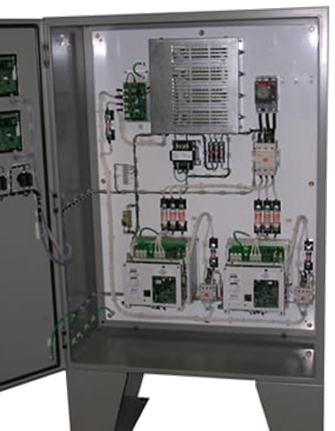

25Hz Power Supply / Frequency Converter

Outdoor Drives

60HP, Nema 3R / Nema 4 Enclosure

Converts 60Hz Power to 25Hz Power

to run existing 25Hz Equipment

Oval: Figure 18
Oval: Figure 19

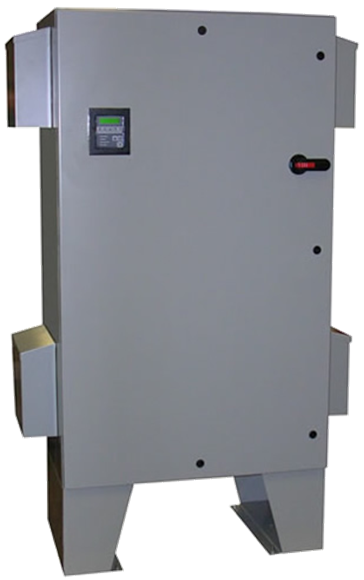

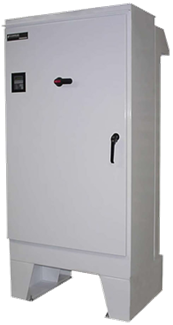

Outdoor Drive - 500HP, Nema 3R

Outdoor Drive

500HP, Nema 3R

(Front View

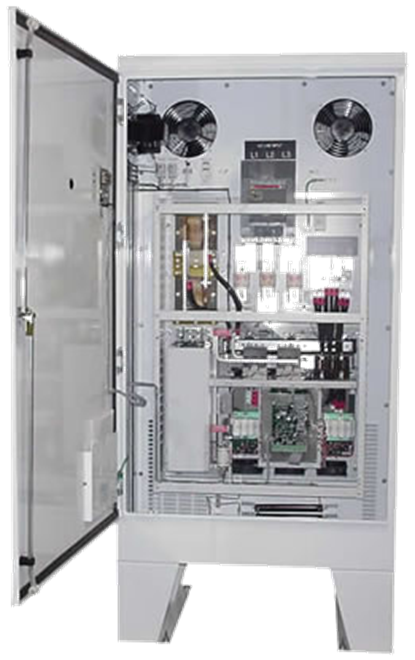

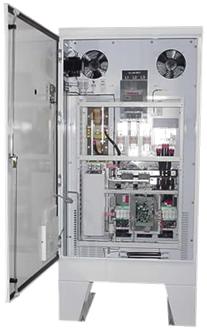

Outdoor Drive

500HP, Nema 3R

(Inside View)

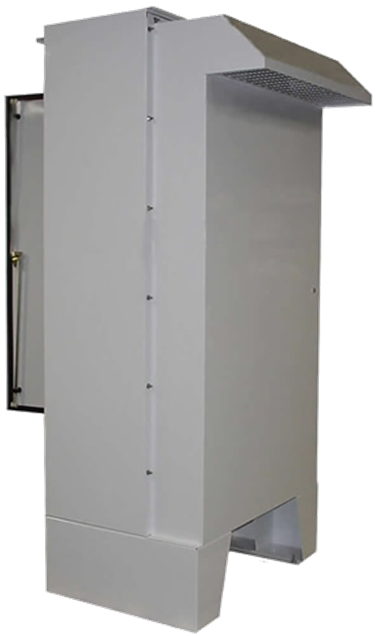

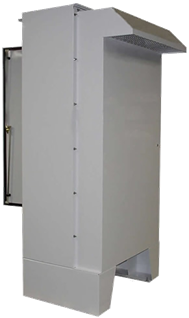

Outdoor Drive

500HP, Nema 3R

(Rear View)

Oval: Figure 20

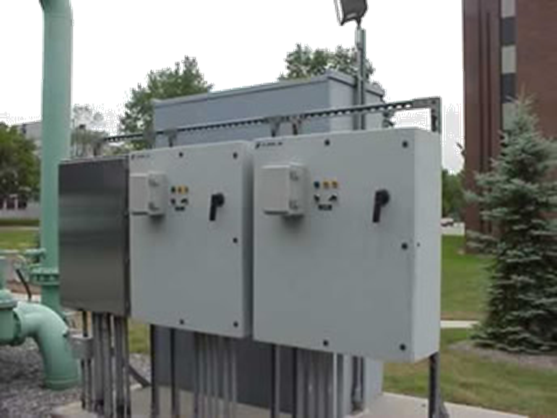

Outdoor Drives - Nema 3R

40HP AC Drive

with Bypass

200HP AC Drive

Oval: Figure 21
Oval: Figure 22

Sawmill - Log Process Line

Enclosure #1

Common Bus System

(Inside View)

Enclosure #2

Common Bus System

(Inside View)

Enclosure #1

Common Bus System

(Inside View)

Quantity 10, Closed Loop AC Vector Drives,

Common DC Bus with AC Line Regen Module

Roller Table Common DC Bus System

(Front View)

(Inside View)

Quantity 4, 40HP AC Drives with AC Line Regen Module

Nema 3R Outdoor Enclosure

Oval: Figure 23

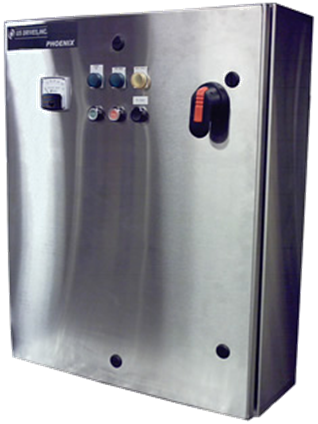

Food Industry Drive - 60HP, Nema 4X Enclosure

Nema 4X

(Stainless Steel)

Enclosure 60HP

With Input Disconnect & Fuses

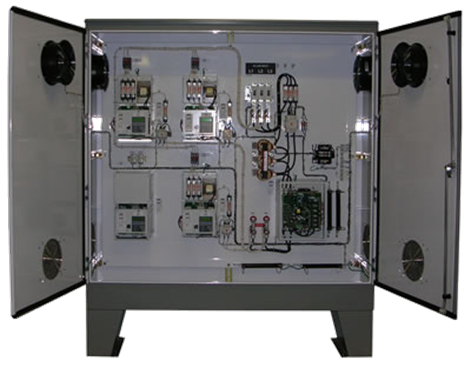

Test Stand Drives

(Front View)

(Inside View)

Two 20HP Closed Loop Vector Drives, Common DC Bus

With Dynamic Braking

Two 150HP AC Drives

Common DC Bus

 with Dynamic Braking(Inside View)

100HP & 50HP AC Drives

Common DC Bus

 with Dynamic Braking(Inside View)

Oval: Figure 25
Oval: Figure 24

Ladle Cart Drive

40HP AC Drive System with Dynamic Braking

40HP AC Drive System

With Dynamic Braking

(Front View)

40HP AC Drive System

With Dynamic Braking

(Inside View)

40HP AC Drive System

With Dynamic Braking

(Rear View)

Oval: Figure 26
